MS27467T25F24SN
Applications
Product Details

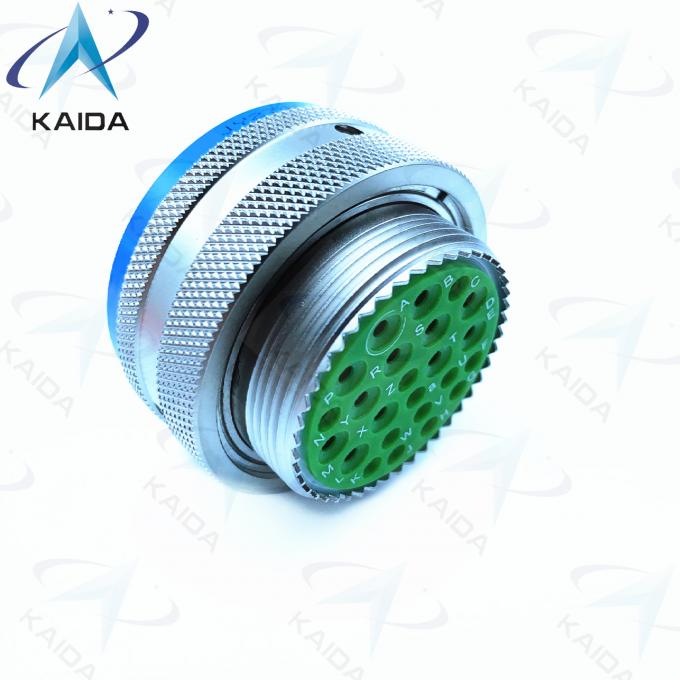

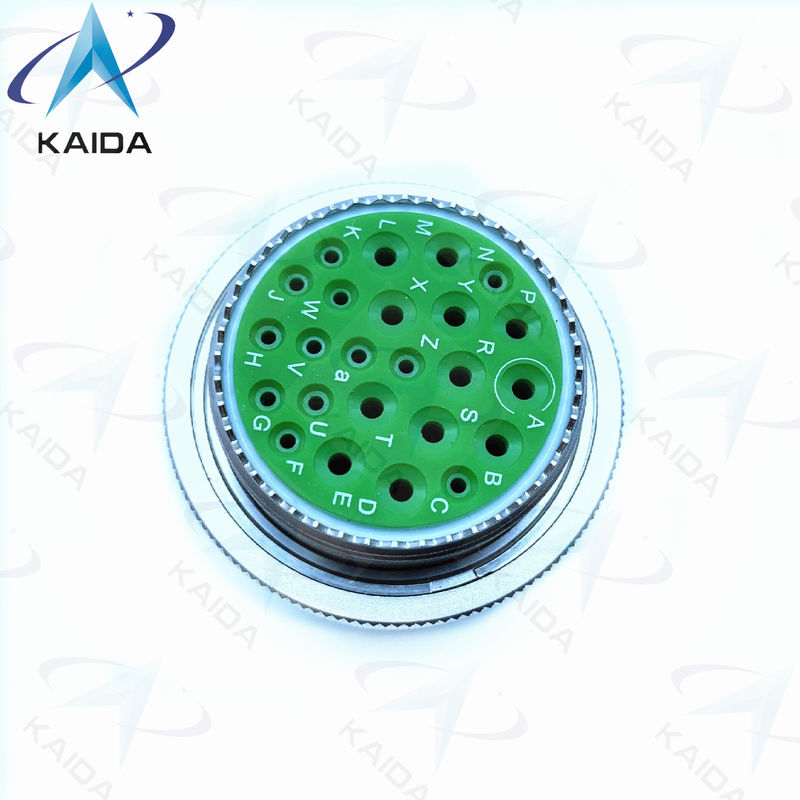

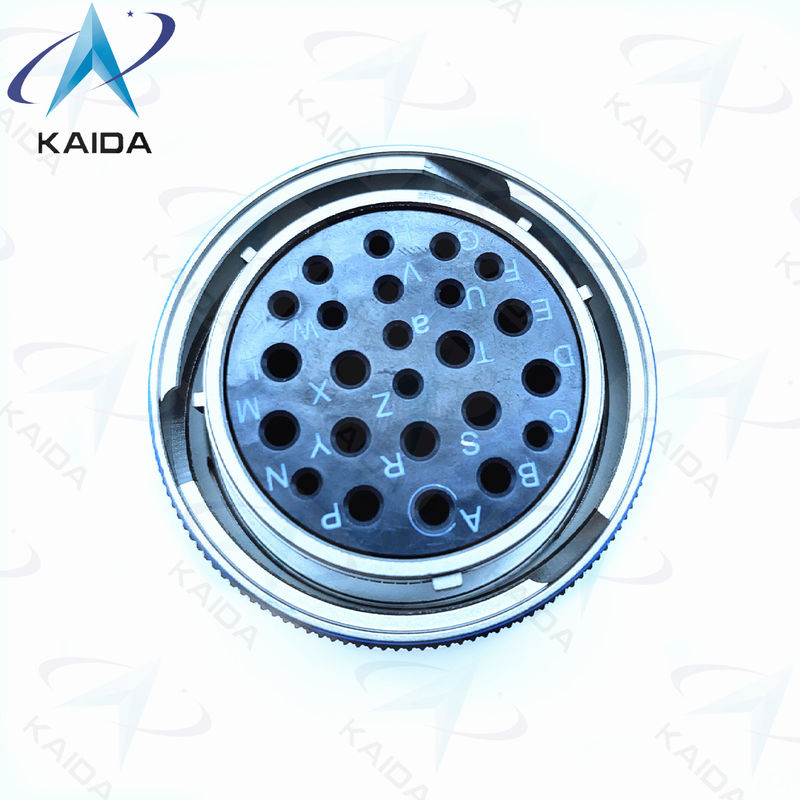

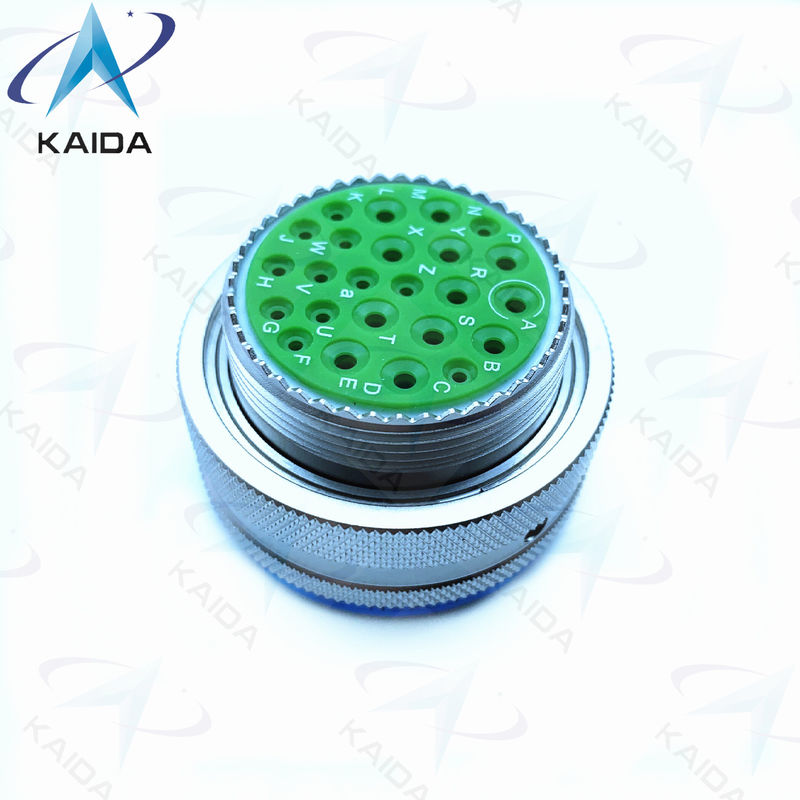

MIL-DTL-38999 Series Ⅰ Copper Alloy Plug Designed for Extreme Conditions.MS27467T25F24SN.24 female pins.
Part Number:MS27467T25F24SN
Product Description:
MIL-DTL-38999 Series Ⅰ is a light weight, high performance, high reliability connector series designed for a wide variety of applications. It features a 24-contact design with a crimp mounting type, gold contact plating, and a voltage rating of 500V. This series is equipped with MS27467T25F24SN contacts, which provide superior performance in a variety of applications. This series is an ideal choice for engineers looking for a reliable, light weight connector with a high voltage rating and superior performance.
Features:
- Product Name: MIL-DTL-38999 Series Ⅰ
- Shell Size: 25
- Gender: Plug
- Contact Plating: Gold
- Connector Type: Circular
Technical Parameters:
| Property | Value |
|---|---|
| Product | MIL-DTL-38999 Series Ⅰ |
| Part Number | MS27467T25F24SN |
| Insert Arrangement | 25-24 |
| Contact Material | Copper Alloy |
| Gender | Plug |
| Mounting Type | Crimp |
| Operating Temperature | -55°C To +125°C |
| Shell Size | 25 |
| Current Rating | 7.5 A |
| Shell Material | Aluminum Alloy |
| Shell Finish | Electroless Nickel |
| Contact Plating | Gold |
Applications:
The MIL-DTL-38999 Series Ⅰ from KAIDA is an ideal choice for a variety of applications. It features a 25-24 insert arrangement and a 25 shell size. The MS27467T25F24SN is made of a copper alloy, and features electroless nickel plating for reliable and durable performance. It is also designed to provide superior electrical performance and contact integrity. This MIL-DTL-38999 Series Ⅰ is suitable for crimp mounting and is perfect for and aerospace applications.
Customization:
MIL-DTL-38999 Series Ⅰ MS27467T25F24SN Plug Crimp Connector 7.5A Electroless Nickel from KAIDA
This MIL-DTL-38999 Series Ⅰ plug crimp connector from KAIDA has a model number MS27467T25F24SN. It is designed for an operating temperature range of -55°C to +125°C and has a current rating of 7.5A. The shell finish is electroless nickel. This connector is ideal for a variety of applications.
Support and Services:
MIL-DTL-38999 Series Ⅰ provides technical support and services, including:
- On-site installation and startup assistance
- Technical support and troubleshooting
- Software updates and upgrades
- Technical documentation
- Training
- Return and repair services
Packing and Shipping:
MIL-DTL-38999 Series Ⅰ Packaging and Shipping:
- Packaged in plastic trays, with an instruction card for each connector.
- Protected against moisture, dust, and other environmental factors during shipment.
- Shipped in a secure container with a MIL-STD-2073 packing label.
- Marked with a unique serial number and shipped with a packing list.
FAQ:
Q: What is MIL-DTL-38999 Series Ⅰ?
A: MIL-DTL-38999 Series Ⅰ is a type of cylindrical electrical connector manufactured by KAIDA. The model number is MS27467T25F24SN and it is made in China.
Q: What are the features of MIL-DTL-38999 Series Ⅰ?
A: MIL-DTL-38999 Series Ⅰ has a high-density contact configuration that is suitable for high-speed and mixed-signal applications. It also has a high-temperature resistance rating of 250°C for both the plug and receptacle.
Q: What are the applications of MIL-DTL-38999 Series Ⅰ?
A: MIL-DTL-38999 Series Ⅰ is commonly used in aerospace, , and industrial applications. It is suitable for applications that require high-reliability and vibration resistance.
Q: What is the contact termination style of MIL-DTL-38999 Series Ⅰ?
A: MIL-DTL-38999 Series Ⅰ has a solder cup contact termination style.
Q: What is the temperature range of MIL-DTL-38999 Series Ⅰ?
A: MIL-DTL-38999 Series Ⅰ has a temperature range of -55°C to 250°C for both the plug and receptacle.
